产品型号(Model No.):WGJ12004A-GDA-A1
厚度(Thickness):2.0 mm

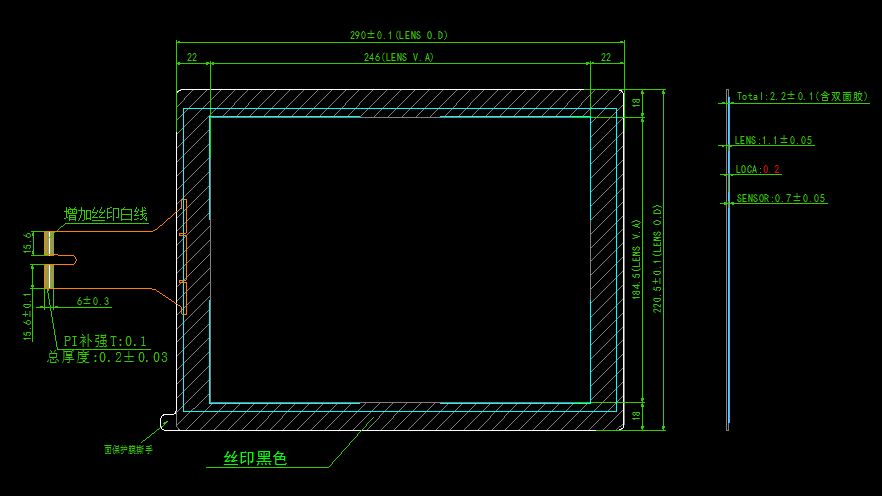

外形尺寸(Outline Dimensional):335mm*200mm
可视区域(View Area): 311mm*176mm
结构类型(Panel structure): G+G
操作温度(Temperature range): -20℃~+70℃
储存温度(Humidity range): -30℃~+80℃
工作电压(Working voltage): DC5.0V
线性精度(Linear equation): ≤2%
透光率(Optical Characteristics) : ≥87%
表面硬度(Surface Hardness): ≥ 6H
NEOSER make the Capacitive touch panel WGJ12004A-GDA-A1, from the size 2.8inch to 85inch, Pls connect with display@neoser.com
触摸点数(Touch point):10
12.1寸电容屏 WGJ12004A-GDA-A1
- 型号: WGJ12004A-GDA-A1
- 产品摘要: 风扬光电专业生产12.1寸电容式触摸屏,型号WGJ12004A-GDA-A1
